Heavy Duty Resolute 4200 & PI-2000 Large Picture Windows (Fixed)
Our Resolute 4200 Large Picture Window Options: Identical on the Outside but Very Different Inside
Typical Resolute 4200 Windows (above left): ¾” IG Double Pane Unit, Standard 3MM Thick Glass, Standard Internal Supports
Heavy-Duty Resolute 4200 Windows (above right): 1” IG Double Pane Unit, 5.7MM Thick Tempered Glass, Extra Internal Supports
Two Great Options for Your Large Picture Window Needs
We offer two excellent solutions when you want large picture windows to create stunning views: our Heavy-Duty Resolute 4200 and Jumbo Frame PI-2000 window series. Although from the side it’s clear these are two very different window types, their front views both feature slim sightlines and clear, expansive vistas. The Heavy-Duty Resolute 4200 and Jumbo Frame PI-2000 are also specially engineered to safely carry much thicker and heavier glass needed for large picture windows.
Large Picture Windows: Thicker Glass & Stronger Frames

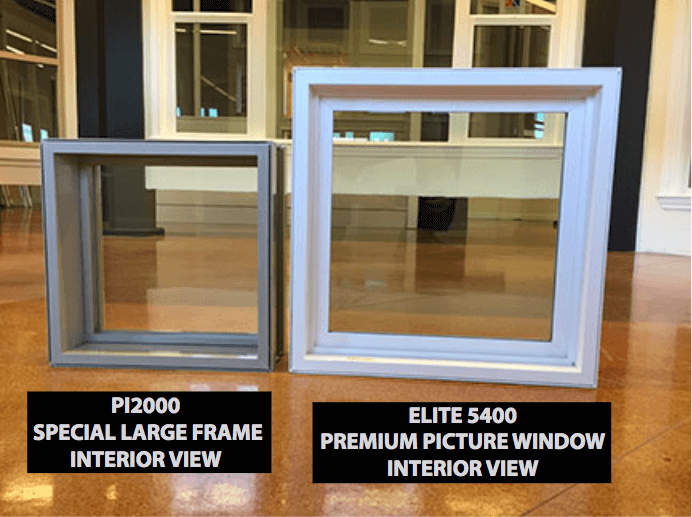

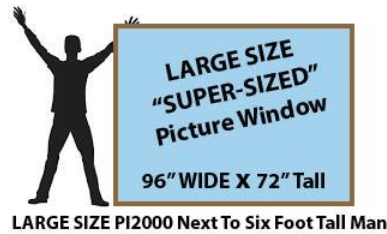

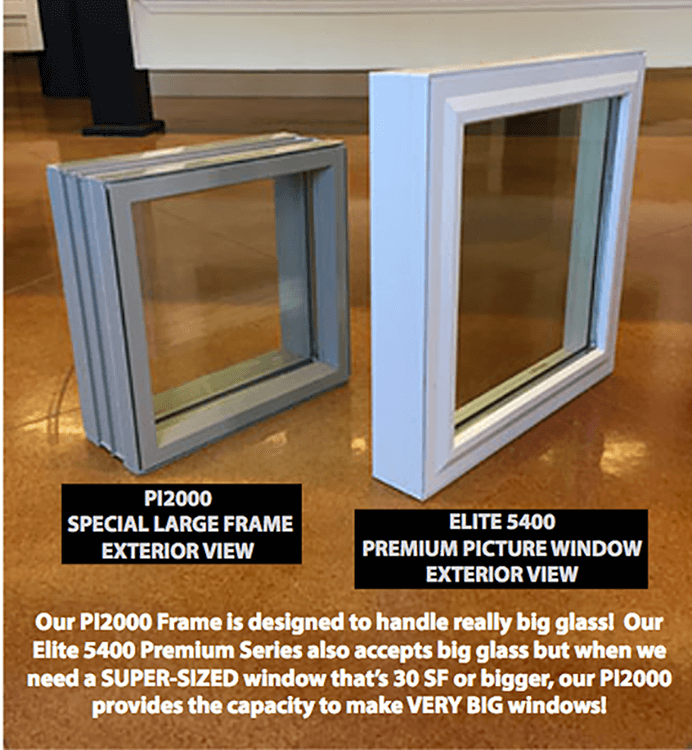

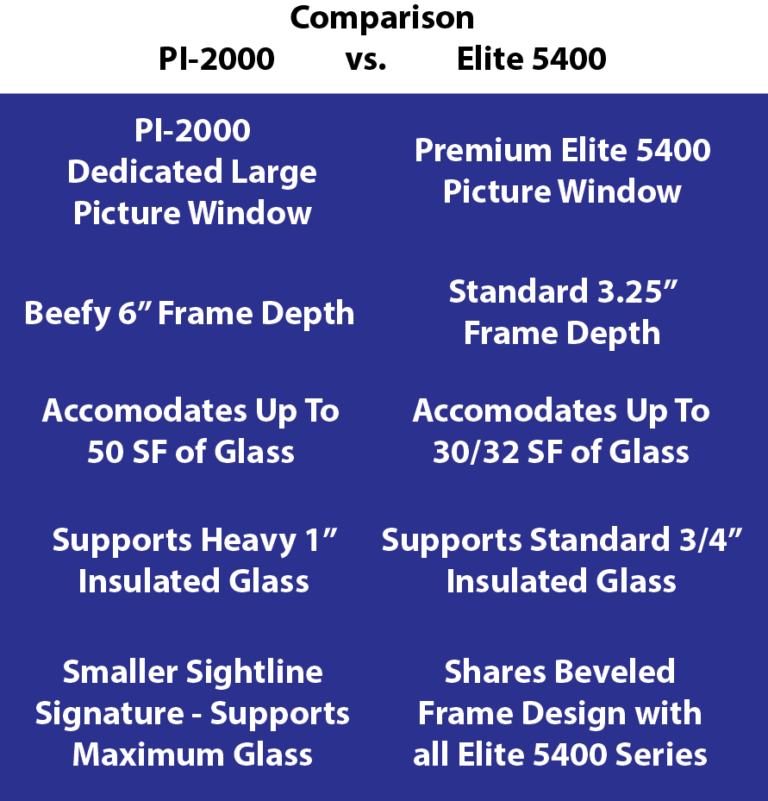

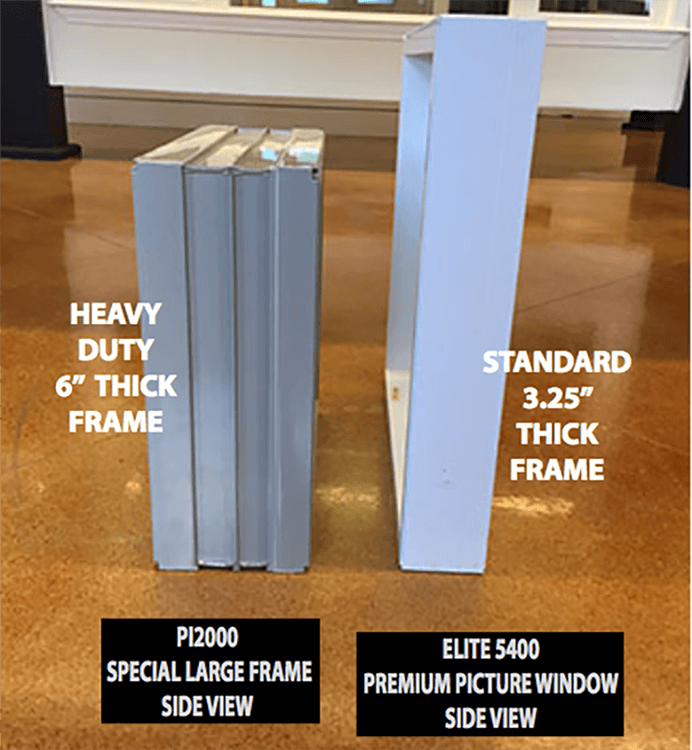

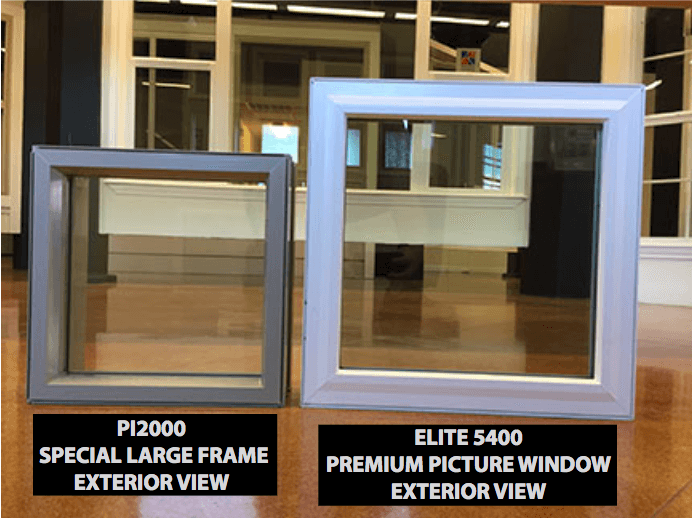

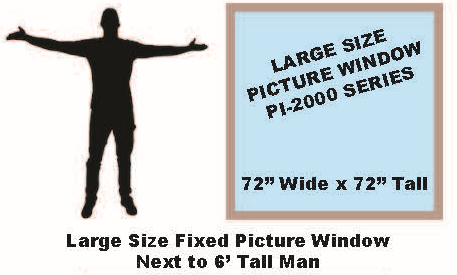

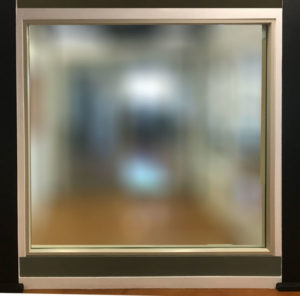

Our largest dedicated jumbo frame size is available in the PI-2000 fixed picture window shown on the left. The frame is 6” thick and has a 1” IG Unit capable of handling ¼”, double pane, tempered glass. The PI-2000 is a wide-edged, heavy window system designed solely to carry hefty loads and large sizes. Because of this it’s best suited for installation in thicker walls.
The Heavy-Duty Resolute 4200 large picture window shown on the upper left comes in a 3 ¼” frame depth like all windows in our Resolute family. It can be easily used with or joined (mulled) to other Resolute windows. Heavy-Duty Resolute 4200 large picture windows appear identical on the outside to typical Resolute picture windows, but inside there are major differences. They have a unique internal design and additional support struts engineered for thicker, heavier glass.
Resolute 4200 Frame Cross-Section
Resolute 4200 large windows are 3 ¼” thick with ¾” wide IG Units. They usually include double-strength glass and have internal supports to equally distribute the load throughout the frame.
Heavy-Duty Resolute 4200 Frame Cross-Section
Heavy-Duty Resolute 4200 large windows are 3 ¼” thick and have bigger 1″ IG Units. Typically, they’re built with heavier ¼” tempered glass and have internal supports under and around it to distribute the load throughout the frame.
